Optical Layout of Ultima Multi Photon Microscope

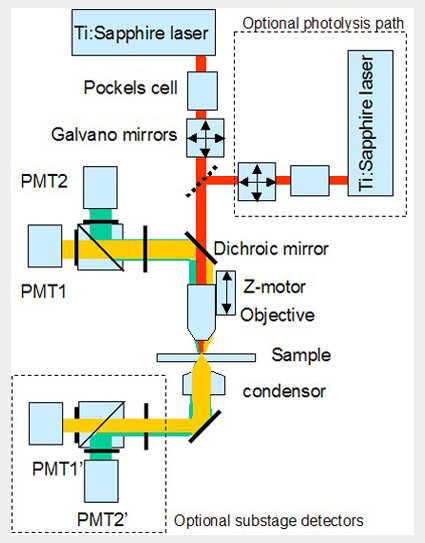

Simplified diagram of Ultima Multi-Photon Microscope.

Emission light path with filters typical for green fluorescence (FITC, GFP etc.) and red fluorescence (Cy3, TRITC, etc.).
Courtesy of Prairie Technologies, Inc.
